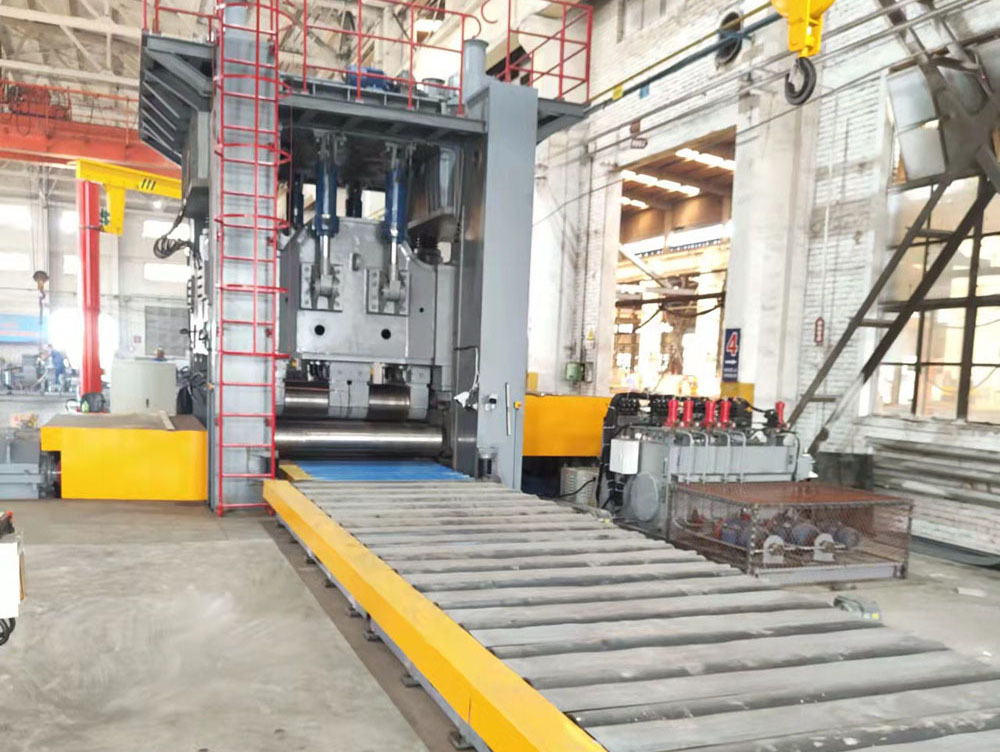

9-rolls CNC Plate Straightening Machine
1. Application scope:
This plate leveling machine is applicable for fine leveling of normal/medium plates, high-precision and high-strength plates.
2. Technical Parameters:
| Machine type | 9-rolls plate straightening machine |
| Model No. | HQW43-40x2000.9R |
| Maximum plate thickness | 40 mm |
| Minimum plate thickness | 10 mm |
| Maximum plate width | 2000 mm |
| Plate yield strength | ≤690 MPa |
| Plate Leveling speed | Approx.6 m/min |
| Number of Work rolls | 9 pcs |
| Work roll layout | Upper 5 pcs and Lower 4 pcs |
| Work roll diameter | 400 mm |
| Roll spacing | 460 mm |
| Support roll quantity | 2 columns |
| Leveling accuracy | 1 mm/m |
| Length of the roller tables (motorized) | As per required |
(*Above parameters are indicative and will be modified as per customers's actual requirements.)
3. Machine Features:
1) Pre-stressed frame structure, carried out stress annealing relief treatment after welding, with high strength, stability and rigidity.
2) With 2-way feeding and repeated leveling function.
3) The machine mainly consists of machine frame, movable crossbeam, lower crossbeam, main transmission device, work roll assembly, support roll assembly, downpress mechanism, balance device, electrical control system, and loading/unloading roller table etc.
4) Need multiple reciprocating leveling for thin plates.
5) The main machine is equipped with side vertical roller to limit the deviation of steel plate during conveying.
6) The work rolls and support rolls are all carried out surface hardening treatment and flaw detection.
7) All the roll bearings are self-aligning roller bearings.
8) With motorized roller table at feeding and discharging end.
9) With Automatic feeding and discharging roller table to facilitate the feeding and exiting of the straightening machine. The feeding roller table is equipped with a plate centering device and the rollers are powered.
11) It's suitable for the leveling of medium plate, high-precision and high strength plates.
12) Digital display, PLC control. Visual input, edit, modify and store process parameters.
13) Siemens PLC and touchscreen to control the operation.
