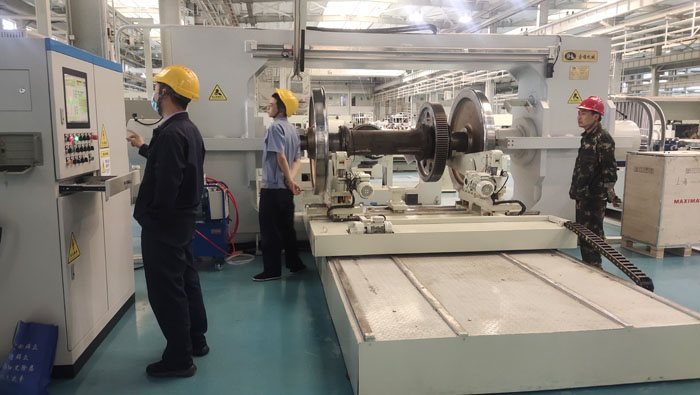

Double cylinder Automatic Wheelset Mounting Press - Model HQ02
1. Application scope:
This Horizontal Hydraulic Wheel Press is applicable for mounting the wheelset wheels of all railway rolling stocks, such as locomotives, wagons, coaches, metros, high-speed trains and other railcars.
2. Machine Features:
- Double cylinders for wheelset pressing. Only one time positioning to perform both wheel pressing without reversal of the axle.
- Only one operator is required to complete all the operations.
- The wheel press adopts overall gantry frame structure. The gantry frame is welded by forged steel and high-strength steel plate material, then carried out overall annealing and stress relieving, and overall processing on high-performance CNC machining center. With high strength, good rigidity and small deformation.
- Unique Invention patented cylindrical ram for wheel mounting, with high pressing accuracy.
- Special patented centering devices at both ends of two ram cylinders for center hole positioning.
- With an electric axle support trolley for transferring the wheelset into / out from the press.
- With measurement and recording system to measure and record the pressing data.
- With SIEMENS PLC and AdvanTech industrial PC to monitor and control the operation.
- A high-pressure oil injection system is option for easy wheel mounting.
| Maximum pressing force | 2000kN ~ 5000kN (as per required) |
| Number of Ram cylinders | 2pcs (1 left + 1 right) |
| Piston stroke | ≥700mm |
| Fast forward speed | 20 mm/s |
| Pressing speed | 3 mm/s |
| Return speed | 24 mm/s |
| Number of axle support trolley | 1pc, electric |
| Maximum hydraulic system pressure | 31.5MPa |
| Main power supply (3-ph AC) | 380V/50HZ or as per required |
| Inner distance control accuracy | ≤ ± 0.5 mm |
| Wheel position difference control accuracy | ≤ ± 0.5 mm |
| Ram positioning accuracy | ≤ ± 0.1 mm |
| Displacement sensor accuracy | 0.01 mm |
| Pressure sensor accuracy | 0.25%FS |
| Error of measuring accuracy | ≤0.01 mm |
| Concentricity of cylinders' centerline | ≤0.5 mm |
| Max Wheelset weight | ≤ 3000 kg or as per required |
| Axle length | 1700 ~ 2600 mm |
| Wheel diameter | Φ740 ~ Φ1250 mm |
| Wheel seat diameter | Φ150 ~ Φ270 mm |
| Wheel hub diamter | Φ180 ~ Φ400 mm |
(*The detailed parameters can be modified as per customer's actual requirements.)
