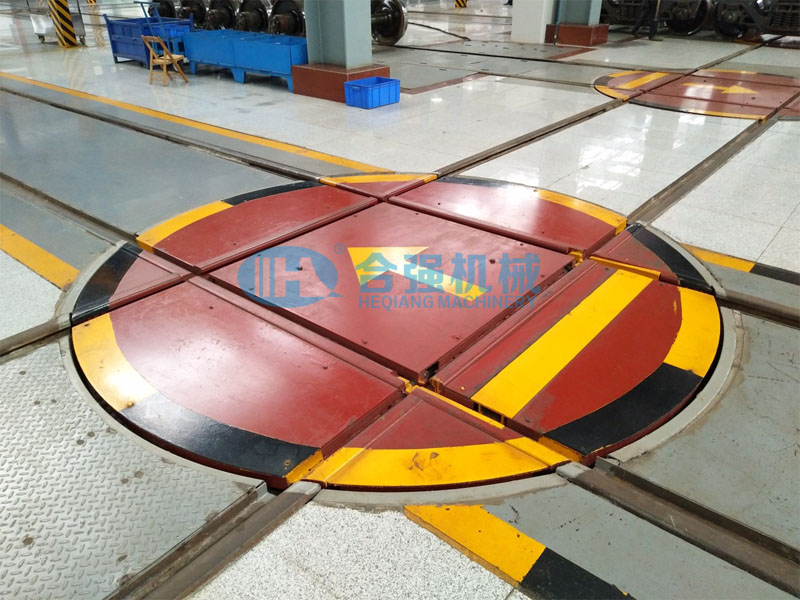

Railway Bogie Turntable (Model HQ85)
Turntable Application:
The Bogie Turntable is used to transfer the railway bogies from one track to another for repair and overhaul in the workshop.
Technical Parameters:
(* Above parameters are indicative, and will be modified as per customer's requirements.)
Turntable Structure & Performance:
- The Bogie turntable is mainly consisted of anti-slip top plate, turntable body, centering device, positioning locking device, 8 roller supports and power device etc.
- The turntable body is overall welded from 45 steel, Q235 steel plate, I-beametc section steel, and carried out annealing and stress relief. With good regidity and strength.
- The turntable can be turned in clockwise or counter-clockwise and will stop at any 90° as per required.
- When the turntable is in any 90° of rotation, the positioning locking mechanism will lock and position the turntable.
- Foundation pit is required for the turntable installation.
Turntable Application:
The Bogie Turntable is used to transfer the railway bogies from one track to another for repair and overhaul in the workshop.
Technical Parameters:
| No. | Specifcation | Parameter |
| 1 | Applicable track gauge | 1434mm, 1520 mm ... |
| 2 | Turntable diameter | 3000mm, 3500mm, 4000 mm |
| 3 | Track layout | # type |
| 4 | Rotation angle | 90° clockwise / counter-clockwise |
| 5 | Operation mode | Manual or Electric+Remote |
| 6 | Loading capacity | 10, 20t or as required |
| 7 | Height difference between turntable track and shop track | Not more than 2 mm |
| 8 | Radial runout | Not more than 2 mm |
| 9 | Gap between turntable track and shop track | Not more than 3 mm |
Turntable Structure & Performance:
- The Bogie turntable is mainly consisted of anti-slip top plate, turntable body, centering device, positioning locking device, 8 roller supports and power device etc.
- The turntable body is overall welded from 45 steel, Q235 steel plate, I-beametc section steel, and carried out annealing and stress relief. With good regidity and strength.
- The turntable can be turned in clockwise or counter-clockwise and will stop at any 90° as per required.
- When the turntable is in any 90° of rotation, the positioning locking mechanism will lock and position the turntable.
- Foundation pit is required for the turntable installation.
