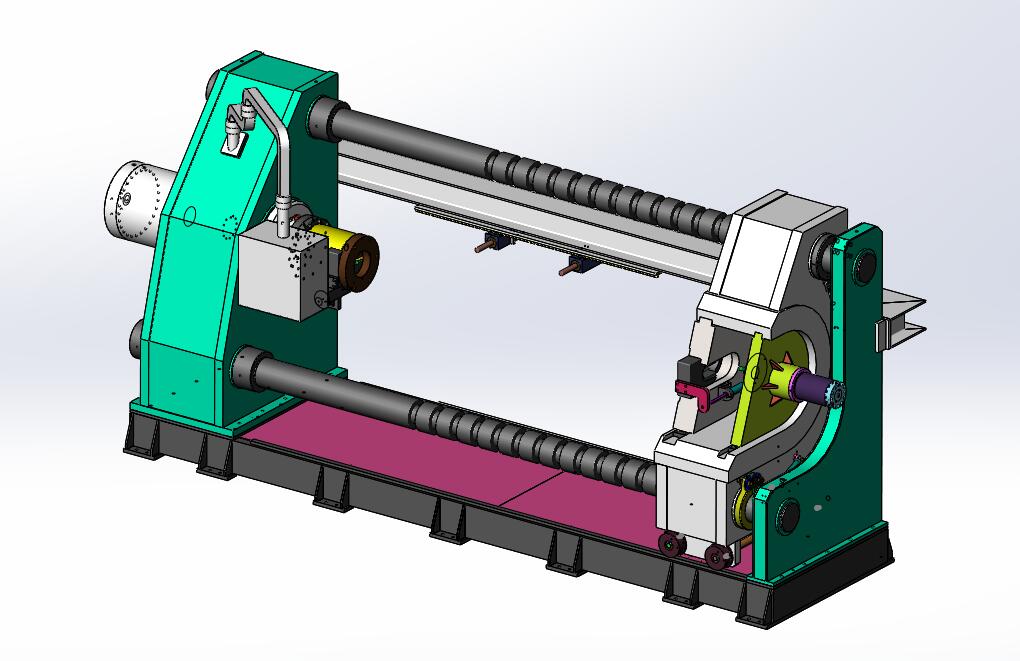

Hydraulic Wheel Press Cap.500T (Model HQYZ-5)
1. Application scope:
This Horizontal Wheelset Press is mainly used to mount and dismount the wheelset wheels and axle for different types of railway vehicles.
2. Technical parameters:
| Ram force | 500T |
| Number of Ram cylinder | 1pc |
| Piston stroke | 600 mm |
| Approach speed | 30 mm/s |
| Pressing speed | 0~3 mm/s |
| Return speed | 40 mm/s |
| Main power supply | 380V/50Hz, AC 3 phase |
| Ram positioning accuracy | Less than 0.2 mm |
| Measuring accuracy | Not more than 0.01 mm |
| Applicable axle length | 1500 ~ 2500 mm |
| Applicable wheel diameter | 600 ~ 1250 mm |
| Wheel seat diameter | 150 ~ 270 mm |
| Wheel hub diameter | 180 ~ 400 mm |
3. Machine Features:
1) Modular structure, consists of chassis, cylinder column, resistant column, rear column, support rods, so on.
2) Single-head cylinder
3) It requires to reverse the axle to mount or dismount the other wheels.
4) Siemens PLC and AdvanTech industrial PC to control and monitor the operation.
5) With data recording system and can export the pressing report with force-displacement curve.
6) With emergency stop button on the control panel.
7) It requires manual hoisting to place the wheelset onto or lift away from the support trolleys.
