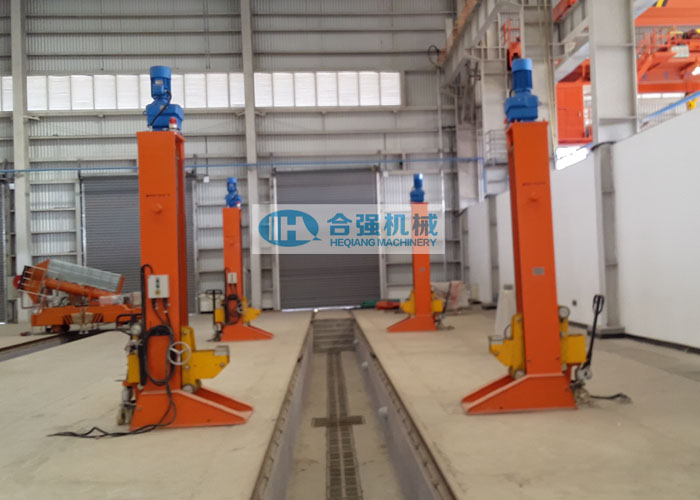

Electric Railway Lifting Jacks, Synchronized Lifting screw column

1. Application scope
The Electric Mobile Lifting Jacks are used to lift the railway vehicle body to a suitable height for maintenance and repair work.
At least 4 units as one group for synchronous lifting.
Lifting capacity from 10 tons to 50 tons are available for options.

2. Machine Parameters
1) One set consists of 4 jacks and 1 control console.
2) Lifting capacity per jack: 25 tons
3) Lifting capacity per set: 100 tons
4) Lifting/lowering speed: Approx.200 mm/min
5) Minimum lifting height: 750 mm
6) Maximum lifting height: 2500 mm
7) Lifting stroke: 1750 mm
8) Motor power per jack: 5.5 kW
9) With 1 main control console. Each jack with a local control box.
10) Cable with connection plug: max 25m per jack.
(* Above parameters are indicative, and can be designed as per customer's actual requirements.)
