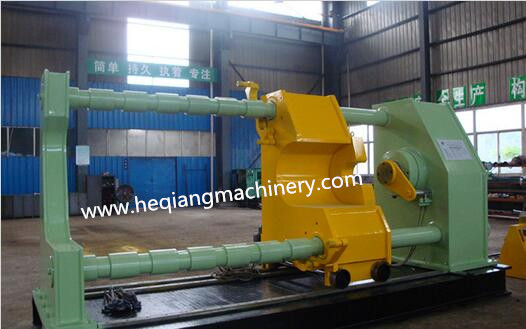

Horizontal Hydraulic Wheel Axle Press Machine (Model No.: HQY92)
1. Application scope:
This horizontal hydraulic wheel press is used to mount and dismount the components on the workpieces. This press is widely used in railway, mining, steel and mechanical applications for assembly and disassembly of wheelsets, motor bearings, bushings, rotors of electric machines and other workpieces.) With recording system for option.
3. Technical Parameters:
| Working pressure | 200 tons ~ 800 tons |
| Number of Ram cylinder | 1 pc |
| Piston stroke | 700mm or as per required |
| Rapid approach speed | 30 mm/s |
| Pressing speed | 0~3 mm/s |
| Return speed | 40 mm/s |
| NUmber of Support trolley | 2 sets |
| Max trolley load | 5 tons or as per required |
| System pressure | 31.5 MPa |
| Main power supply | 380V/50HZ, AC 3 phase |
| Inner distance control accuracy | Manual measurement |
| Wheel position difference control accuracy | Manual measurement |
| Ram positioning accuracy | Less than 0.04 mm |
| Error of measuring accuracy | Not more than 0.01 mm |
| Max Wheelset weight | Not more than 5000 kg |
| Axle length | 1500 ~ 2600 mm |
| Wheel diameter | Φ600 ~ Φ1250 mm |
| Wheel seat diameter | Φ150 ~ Φ270 mm |
| Wheel hub diamter | Φ180 ~ Φ400 mm |
(*Remarks: The above parameters are indicative and can be modified as per customer's actual requirements.)
2. Machine Features:

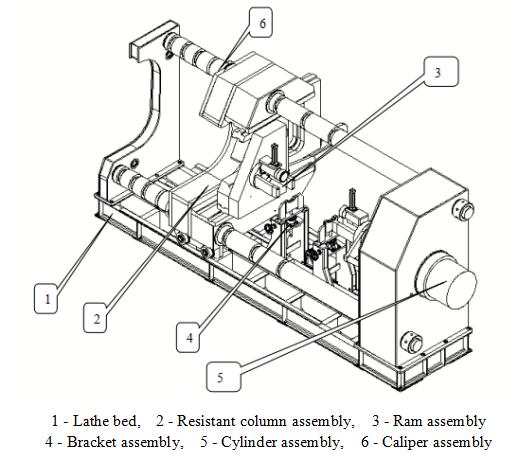

- Modular structure, Single cylinder, resistant column, support trolleys.
- Button operation, easy to learn, achieving the convenience and visualization of operation.
- Unique hydraulic servo system, adjustable pressing speed, it can realize the mounting and dismounting of various types of wheelset.
- Manual hoisting, bracket supporting, pressing needs 180° turning the axle.
- Optional for curve printing function.
