Model No.: HQY27-800

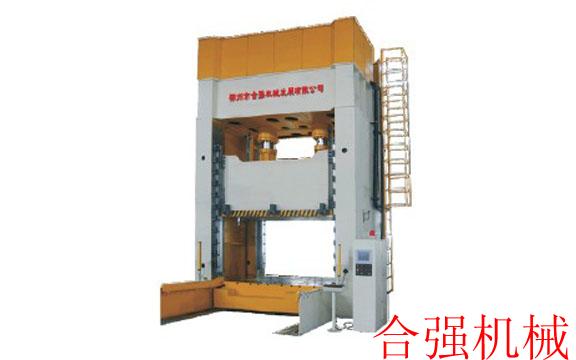

Description: Framed hydraulic press machine
1. Machine Features:
- This hydraulic machine is applicable for metal plate forming, shaft parts' straightening and pressing, equipment maintenance and other metal rolling.
- This machine is a special design, with high production speed, safe and reliable operation.
- It adopts special circuit to reach safety and high speed.
- Touch screen and PLC control, safe and reliable control system, easy operation and high working performance.
- Oil pressure unit uses logic circuit, with good performance of leakproof and shockproof, clean appearance and easy maintenance.
- Strict quality control, specialized production, good performance, high precision and prompt service.
2. Main Technical Parameters:
| Model No. | HQY27-800 |
| Nominal pressure | 8000 kN |
| Max working pressure of Liquid | 25 MPa |
| Max distance from ram to the work table | 1350 mm |
| Max ram stroke | 900 mm |
| Work table size | 2000x1500 mm |
| Ram downstream speed | 150 mm/s |
| Ram upstream speed | 180 mm/s |
| Ram working speed | 8~20 mm/s |
| Motor power | 104 kW |
