Model No.: HQY92-250

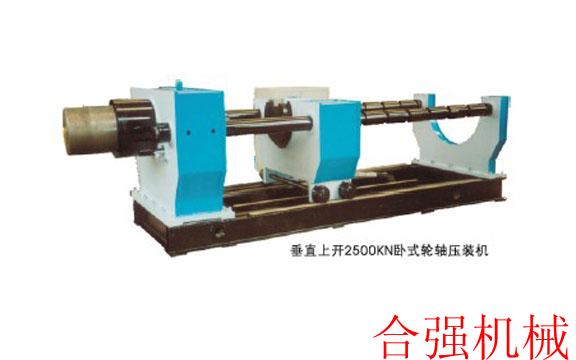

Description: Horizontal wheel axle press machine (Vertical upper opening)
Application scope:
This horizontal wheel axle press machine is applicable for industries of steel, machine & motor manufacturing, and railway vehicle etc. It's used for pressing or dismounting interference fit wheel, shaft and disc type parts. The opening direction of movable beam is upper opening.
Patent No. of movable beam device is ZL02290400.X
Main Technical Parameters:
| Model No. | HQY92-250 |
| Nominal pressure (KN) | 2500 |
| Max Stroke (mm) | 450 |
| Max of wheel / Axle diameter (mm) | 1300/300 |
| Max embedded length (mm) | 2200 |
| Feeding speed (mm/s) | <4 |
| Main motor power (Kw) | 7.5 |
| Opening direction | Upper opening |
