Model No.: HQY32

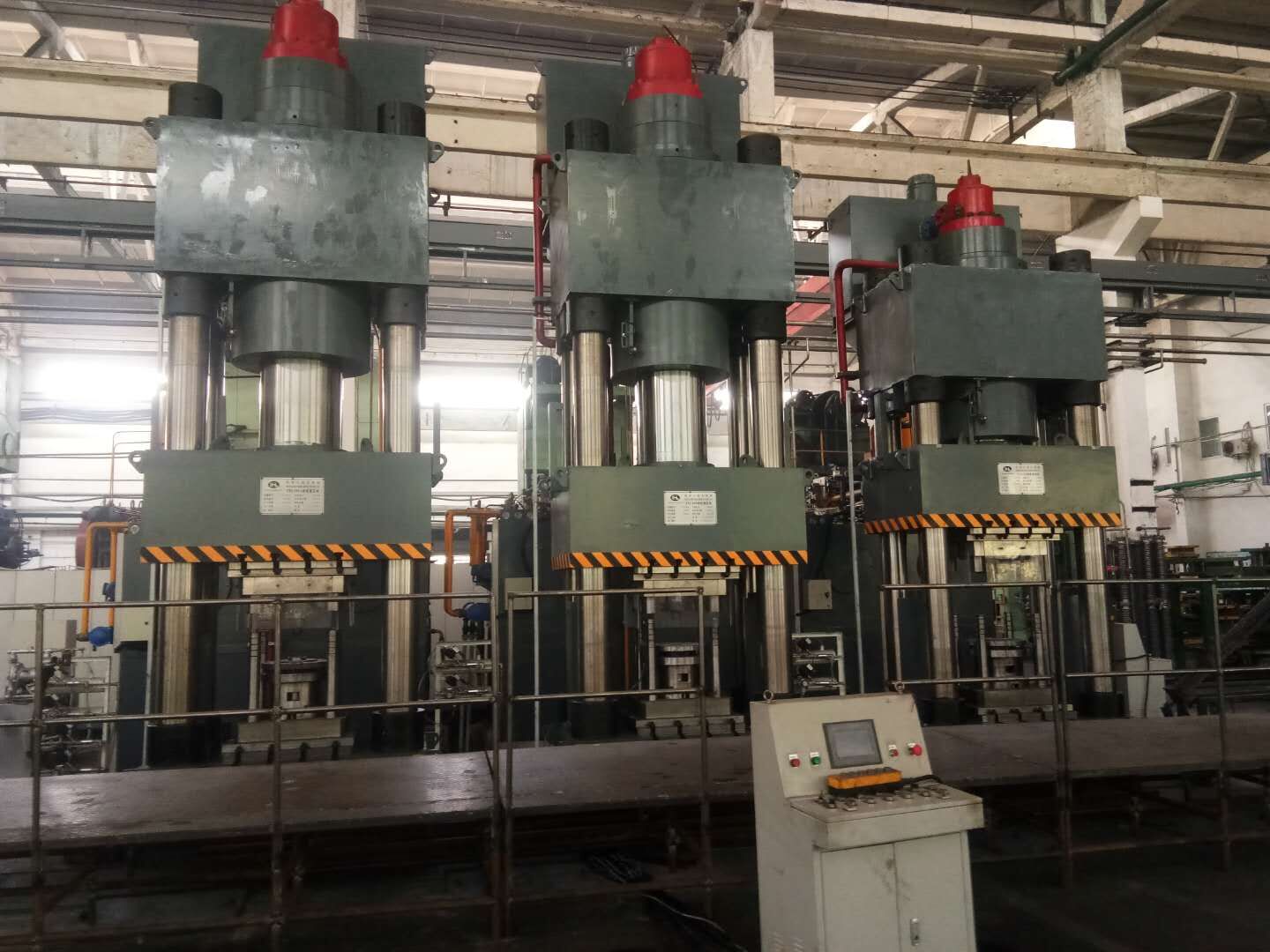

Description: Four-column hydraulic press machine
1. Application scope:
This series product is applicable for pressing process of all kinds of plastic materials , such as punching, bending and flanging etc, and also for calibrating, pressing and forming of grinding wheel, and press forming of plastic and powder products.
2. Machine Features:
- Four column structure.
- This series product has independent power mechanism and electrical system, and uses the button common control.
- The process action uses PLC control to achieve adjustment and semi-automatic operation mode.
- The working pressure, pressing speed and stroke range all can be adjusted as per process requirements.

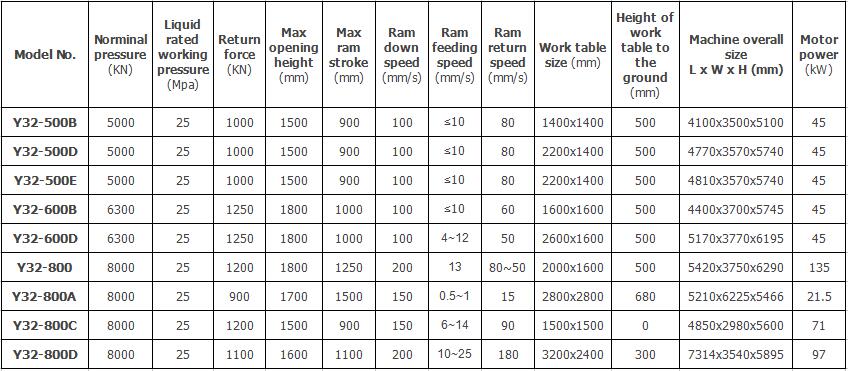

3. Main Technical Parameters:
Description: Four-column hydraulic press machine
1. Application scope:
This series product is applicable for pressing process of all kinds of plastic materials , such as punching, bending and flanging etc, and also for calibrating, pressing and forming of grinding wheel, and press forming of plastic and powder products.
2. Machine Features:
- Four column structure.
- This series product has independent power mechanism and electrical system, and uses the button common control.
- The process action uses PLC control to achieve adjustment and semi-automatic operation mode.
- The working pressure, pressing speed and stroke range all can be adjusted as per process requirements.
3. Main Technical Parameters:
