1. Application scope:

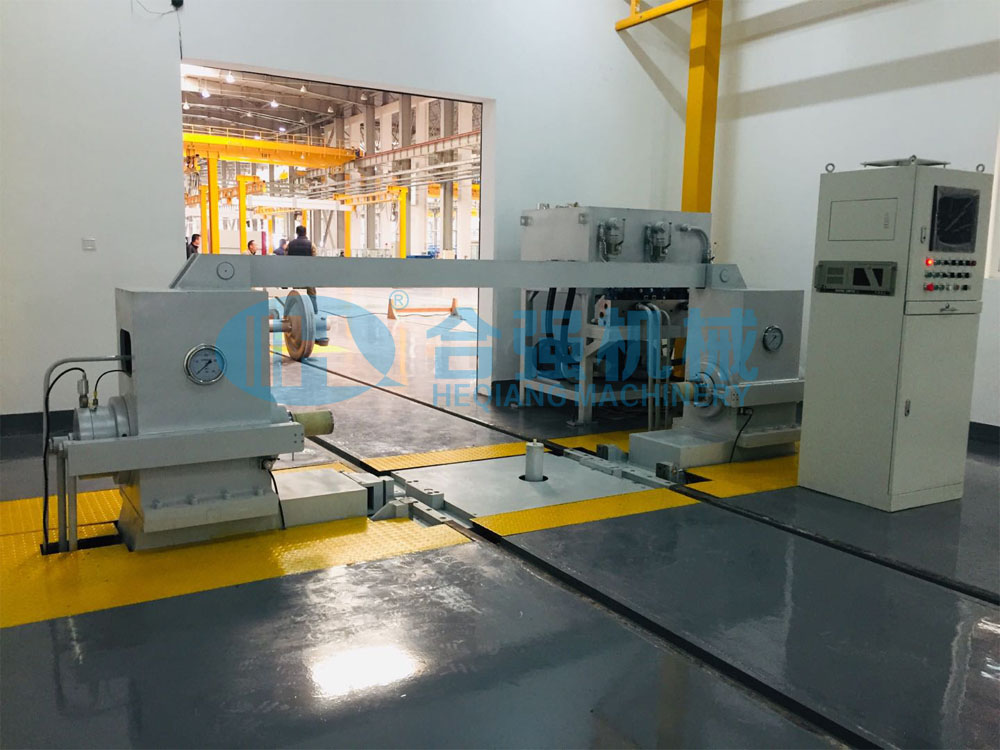

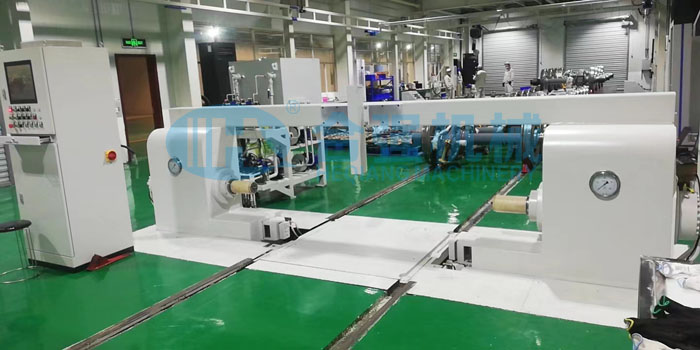

This Bearing Mounting Press is mainly used to automatic mount the rolling bearing onto the axle journal. It's applicable for the wheelsets of locomotives, passenger cars, freight wagons, metro and other railway vehicles.

2. Technical Parameters:
1) Nominal force: 60 tons / 600 kN
2) Number hydaraulic cylinder: 2 (1 left + 1 right)
3) Cylinder stroke: Not less than 460 mm
4) Working speed: 0~6 mm/s
5) Cycle time: ≤ 4 minutes
6) Total installed power: ≤ 25 kW
7) Maximum hydraulic system pressure: 25 MPa
(The press will be designed as per customer's actual requirements and drawings.)

3. Machine Features:
1) The bearing pusher is a horizontal press to be installed in a foundation pit
2) Automatic mounting both end bearings simultaneously.
3) Only a single positioning to complete the mounitng of both end bearings
4) Only one operator required complete the whole operation
5) Double hydraulic cylinders for the mounting operation.
6) Special patented upsetting centre devices
7) Siemens PLC and AdvanTech industrial PC to control the operation
8) Online pass-through arrangement
9) With measurement and recording system to record, plot and generate the pressing report.
