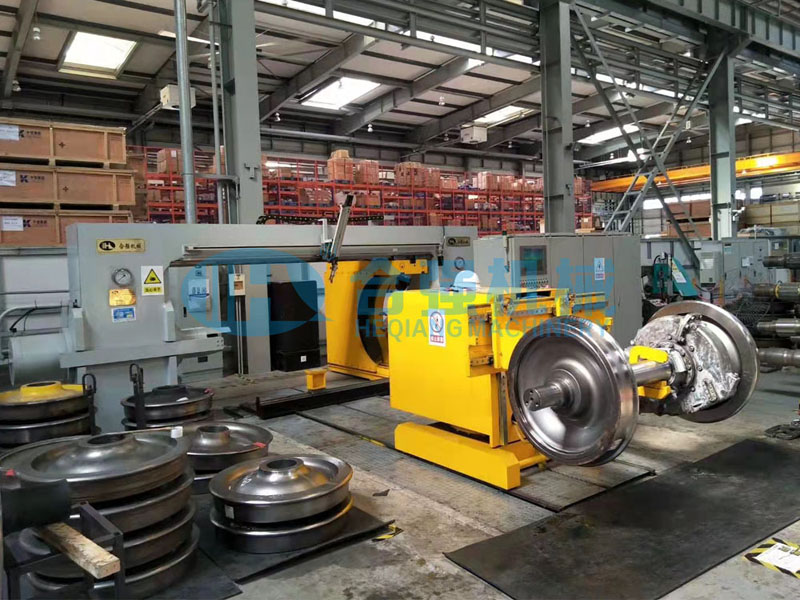

Double-cylinder Wheelset Press with Rotary Trolley - Model HQ01
1. Application scope
This Horizontal Hydraulic Wheel Press is applicable for the mounting, dismounting and back-pressure test of wheelset wheels, brake disc and gear for passenger cars, Metros, intercity vehicles, EMUs and high speed rail trains.
Only one operator is required to completed all the operations.
2. Technical Parameters
| Maximum pressing force | 200 tons, 250 tons or 300 tons |
| Number of ram cylinder | 2pcs (1 left + 1 right) |
| Piston stroke | 700mm or as per required |
| Fast forward speed | 20 mm/s |
| Pressing speed | 0-5 mm/s |
| Return speed | 24 mm/s |
| Number of support trolley | 1 set, 180 degree rotation |
| Maximum hydraulic system pressure | 31.5MPa |
| Main power supply (AC 3-phase) | 380V/50HZ or as per required |
| Inner distance control accuracy | Not more than0.5 mm |
| Wheel position difference control accuracy | Not more than0.5 mm |
| Ram positioning accuracy | Not more than0.1 mm |
| Error of measuring accuracy | Not more than 0.01 mm |
| Concentricity of cylinders' centerline | Not more than 0.3 mm |
| Max Wheelset weight | 3000 kg |
| Axle length | 1700 ~ 2300 mm |
| Wheel diameter | Φ740 ~ Φ1000 mm |
| Wheel seat diameter | Φ150 ~ Φ270 mm |
| Wheel hub diamter | Φ180 ~ Φ400 mm |
(*The detail parameters are indicative and can be modifiedd as per customer's actual requirements.)

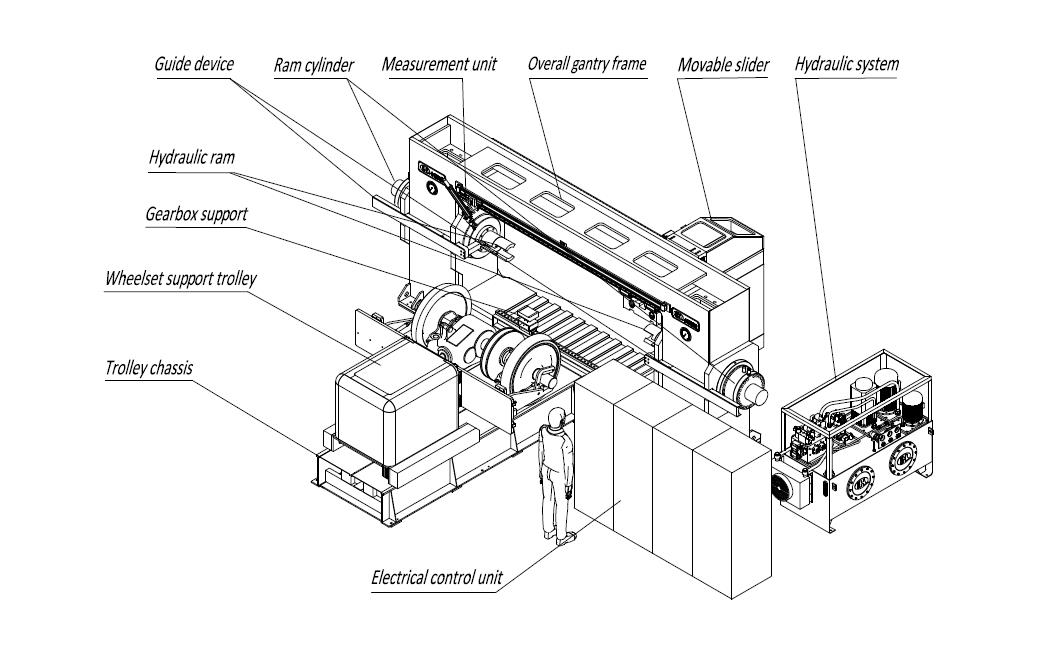

3. Machine Features:
1) The Wheel press machine is a horizontal hydraulic wheel press and will be installed in a pit.
2) The wheel press-fitting machine is able to mount and dismount both wheels on the same axle without turning the axle and in a sequence first the wheel at one side of the axle then the wheel at the other side.
3) The wheel assembly machine will be able to complete the mounting/dismounting of two wheels onto / off the axle simultaneously once the wheels have been loaded onto the Machine.
4) Gantry frame structure, with high strength, good rigidity and less deformation.
5) The Wheel mounting and dismounting press is equipped with special patented centring devices at both ends of two ram cylinders for center hole positioning.
6) Unique Invention patented cylindrical ram for wheel mounting, with high pressing accuracy.
7) The CNC wheel press is equipped with a 180 degree rotary trolley for wheelset loading and unloading. It will exit from the press during the operation.
8) The wheel press is equipped with a gearbox support to support the gearbox during the whole process.
9 With measurement and recording system to control the operation. It can export the force vs displacement curve onto the screen and printer.
