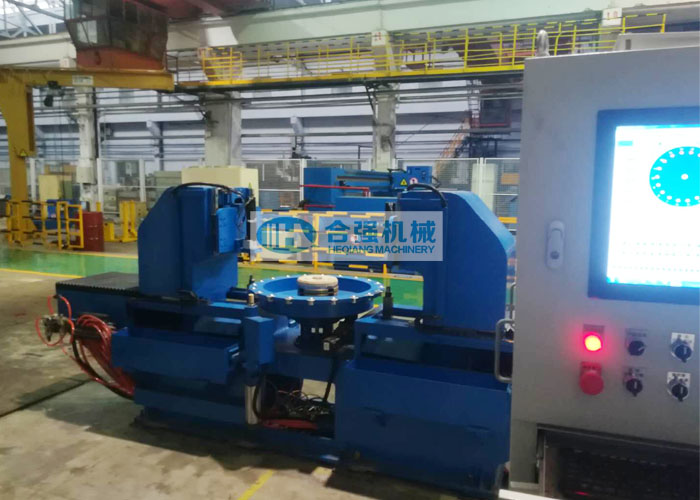

Wheel-mounted brake disc disassembly machine
Machine Usage:
This Wheel-mounted brake disc disassembly press is used to disassemble the connection screws between the wheel and brake discs. It's applicable for all the wheelsets with wheel-mounted brake discs.
Machine Parameters and Features:
1) Torque of the electric wrench: not more than 300 Nm
2) Number of torque: 2 pcs
3) Anchor point of Rotation table: 18 pcs
4) Dismanting process: first lift the wheel with brake disc onto the rotary table, the expansion device will fix the wheel on the rotary table. After one pair of bolt is dismanted, the servo motor will drive the rotary table rotate to the next bolt position for the dismanting work. After all bolts ar
e dismanted, the dismanting device will return to the original position.
5) Automatic positioning and clamping. One time loading to complete all the bolts' dismanting automatically.
6) The machine can automatically position the wheel, no need manually rotate the wheel to fit the machine.
7) The dismanted bolts can be falled into the collection box, no need the operator to collect them.
8) Siemens PLC and AdvanTech industrial PC to control and monitor the operation.
9) The machine is mainly composed of machine body, brake disc dismanting device, brake disc positioning and locking device, rotary table, brake disc initial positioning device, bolt collection box, eclectrial control system and etc.
