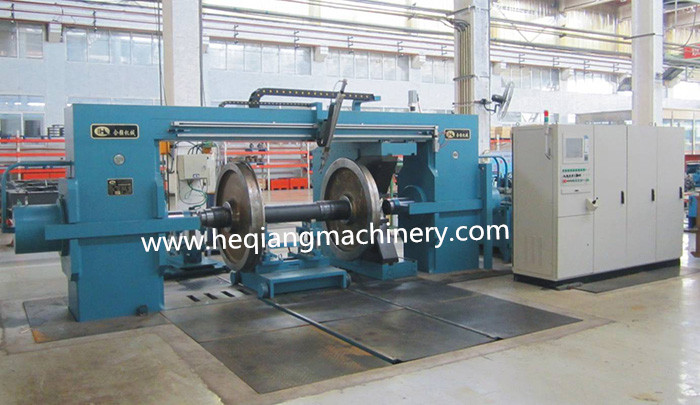

Automatic CNC Hydraulic Wheel Press with Double-end Cylinders - Model HQ01
1. Application scope:
This Wheelset Press is applicable for the mounting and dismounting of the railway wagons wheelsets.
2. Machine Features:
- Gantry frame structure, Dual-end cylinders, special anti-upsetting centres and movable resistant column, with delicated trolley for splicing and feeding. It's suitable for assembly line.
- Full Automatic control, CNC operating system, easy to learn, achieving the convenience and visualization of operation;
- High accurate measuring device, ensure that both wheel inner distance and wheel position difference reach the relevant requirements;
- Multiple function of system software, including wheel calibration function, function of automatic record, intelligent judgement, print, save and query to wheel pressing curve of pressure vs displatement.
- Unique hydraulic servo system, adjustable pressing speed, it can realize the mounting, dismounting and beack-pressure test of various types of wheelset.
- Center hole positioning, pressing without turning the axle, shorten the working time and improve the process efficiency.
3. Technical Parameters:
| Working pressure | 2000kN ~ 5000kN (as per required) |
| Number of Ram cylinders | 2 (1 left + 1 right) |
| Ram stroke | 700 mm |
| Fast forward speed | 20 mm/s |
| Pressing speed | 0-5 mm/s |
| Return speed | 24 mm/s |
| Number of axle support trolley | 1pc |
| Maximum hydraulic system pressure | 31.5MPa |
| Main power supply | 380V/50HZ, AC 3-ph |
| Inner distance control accuracy | Less than 0.5 mm |
| Wheel position difference control accuracy | Less than 0.5 mm |
| Ram positioning accuracy | Less than 0.1 mm |
| Error of measuring accuracy | Not more than 0.01 mm |
| Concentricity of cylinders' centerline | Not more than 0.5 mm |
| Max Wheelset weight | Not more than 3000 kg |
| Axle length | 1700 ~ 2600 mm |
| Wheel diameter | Φ740 ~ Φ1100 mm |
(*The detailed parameters can be designed as per customer's actual requirements.)
